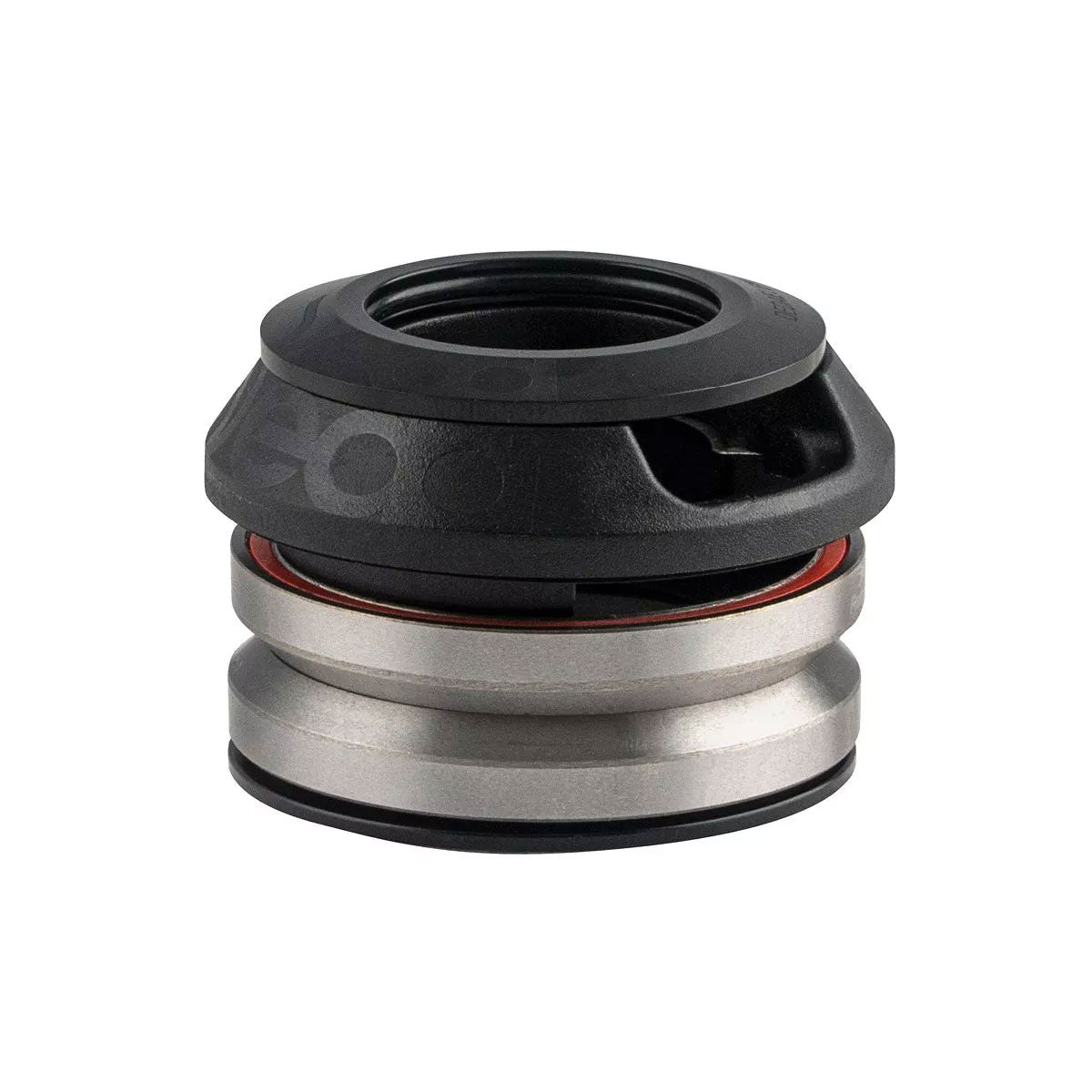

S-DCR Headset External Routing

Specially designed headset for partially external cable routing. This headset allows cables to exit the handlebar then into the frame via a gap in this headset.

Technical Specification:

• Model: Integrated 1.5" - 1.5"
• Bearing Type: Chrome Steel angular contact bearing
• Bearing size: 51.9mm x 40mm x 8mm (upper) / 51.9mm x 40mm x 8mm (lower)
• Contact Angle: 45 degrees x 45 degrees
• Headtube: 56mm diameter
• Fork Steerer: Tapered 1 1/8" to 1.5"
• Top Cover: 56mm diameter
• Crown Race: 39.8mm diameter, aluminium
• Stack Height: 16mm
• Cable Routing: Compatible with 4 cables, Deda HSS spacers are recommended
• Weight: 90g
