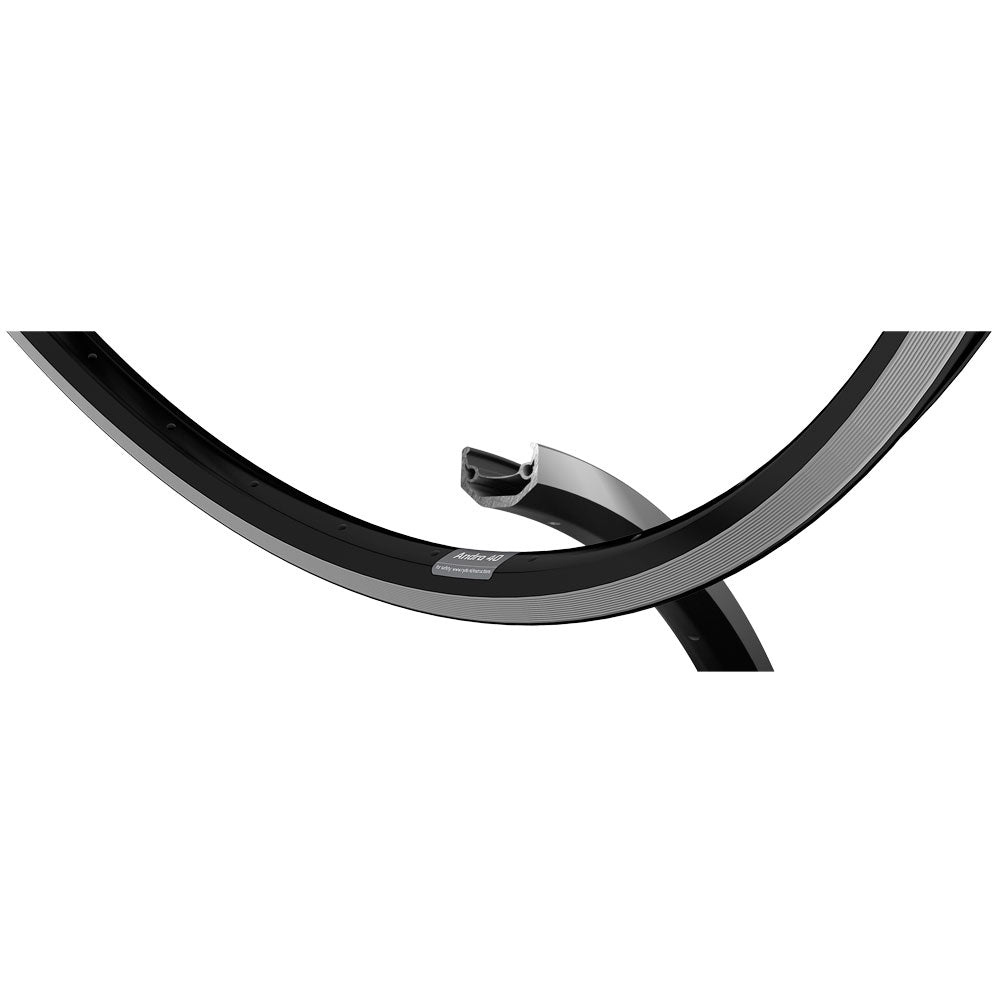

Ryde Andra 40 700c 36H Disc

The original profile made for cargo bikes is still one of the most popular ones.

ANDRA SERIES

The Andra rims can be ordered in many different wheel sizes and with the drilling angle for the spoke holes optimized for the hub and application. All Andra rims are built to withstand and carry more load than regular rims and can ideally be used for not only regular e-bikes, but also transport bikes with or without motor support.

SPECIFICATIONS:

• SHAPE: double wall
• JOINT: pin
• TIRE USE: tube
• HOOK TYPE: crotchet
• BRAKE TYPE: rim brake / disc brake
• ETRTO: 25C
• SIZE (MM): 622
• WEIGHT (GR): 874
• ERD (MM): 600
• ALUMINIUM GRADE: 6063T6
• SURFACE TREATMENT: powder coated
• DIA. SPOKE HOLE NIPPLE BED (MM): 4,5
• DIA. SPOKE HOLE TIRE BED (MM): 9
• ANGLE RAD/AXI: 8/2 degrees
• ZIG ZAG (MM): 2
• NIPPLE HOLE TYPE: ID
• VALVE HOLE (MM): 8,5
• PATTERN: french
• MAX. SPOKE TENSION (N): 1400
• TIRE WIDTH (MM): 29–71
• AXLE LOAD (KG): 120
• SPOKE: 14G
