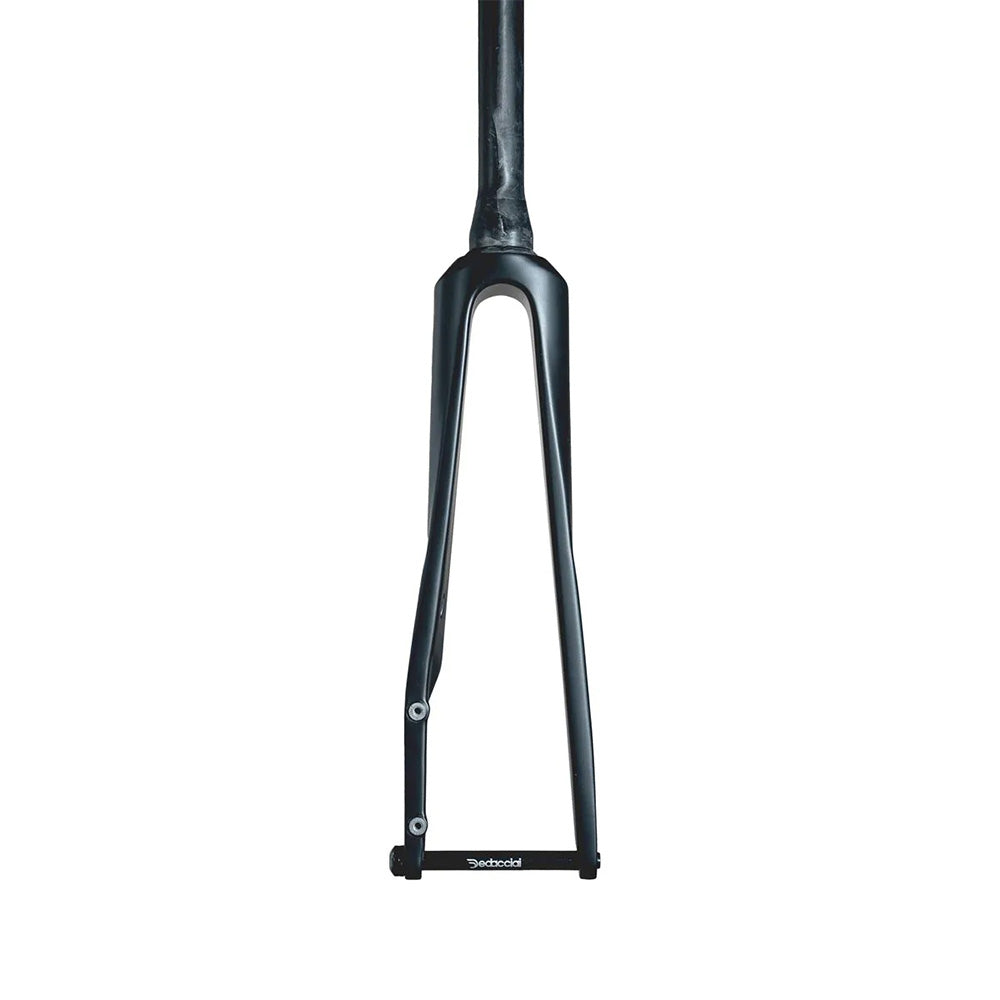

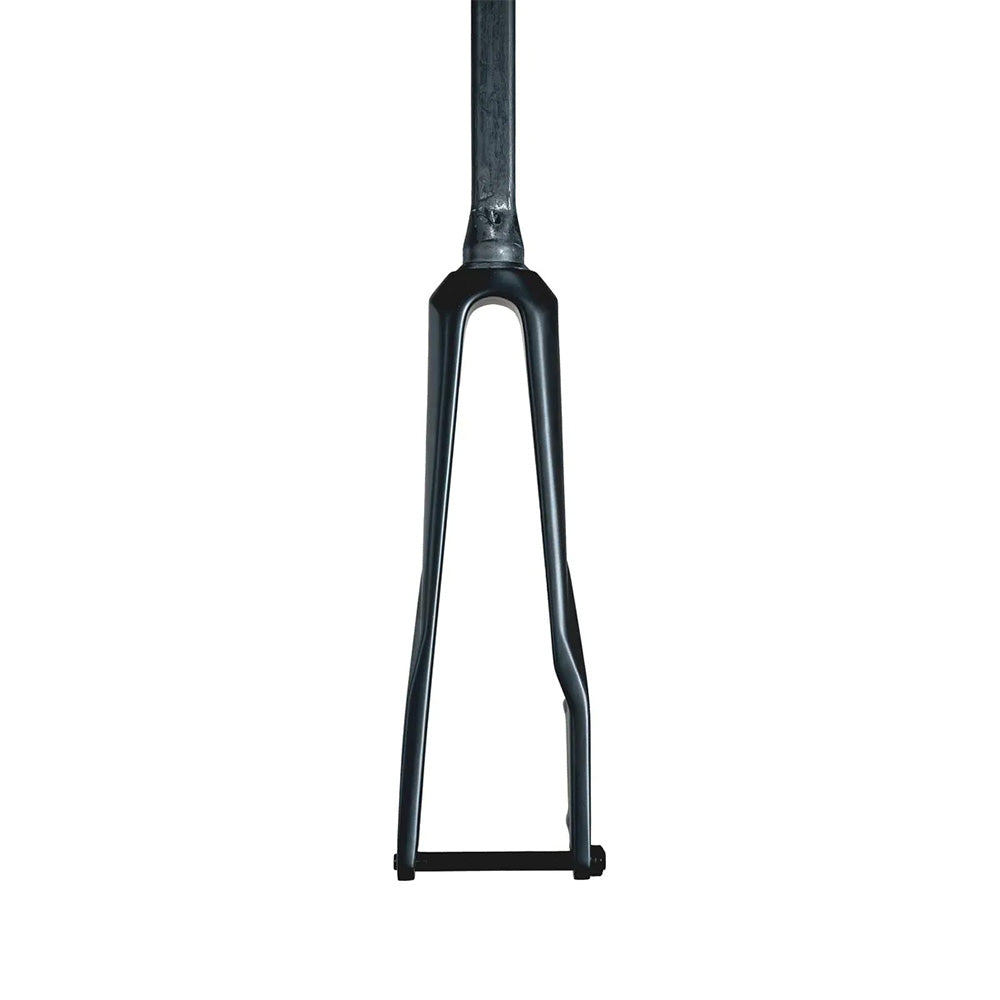

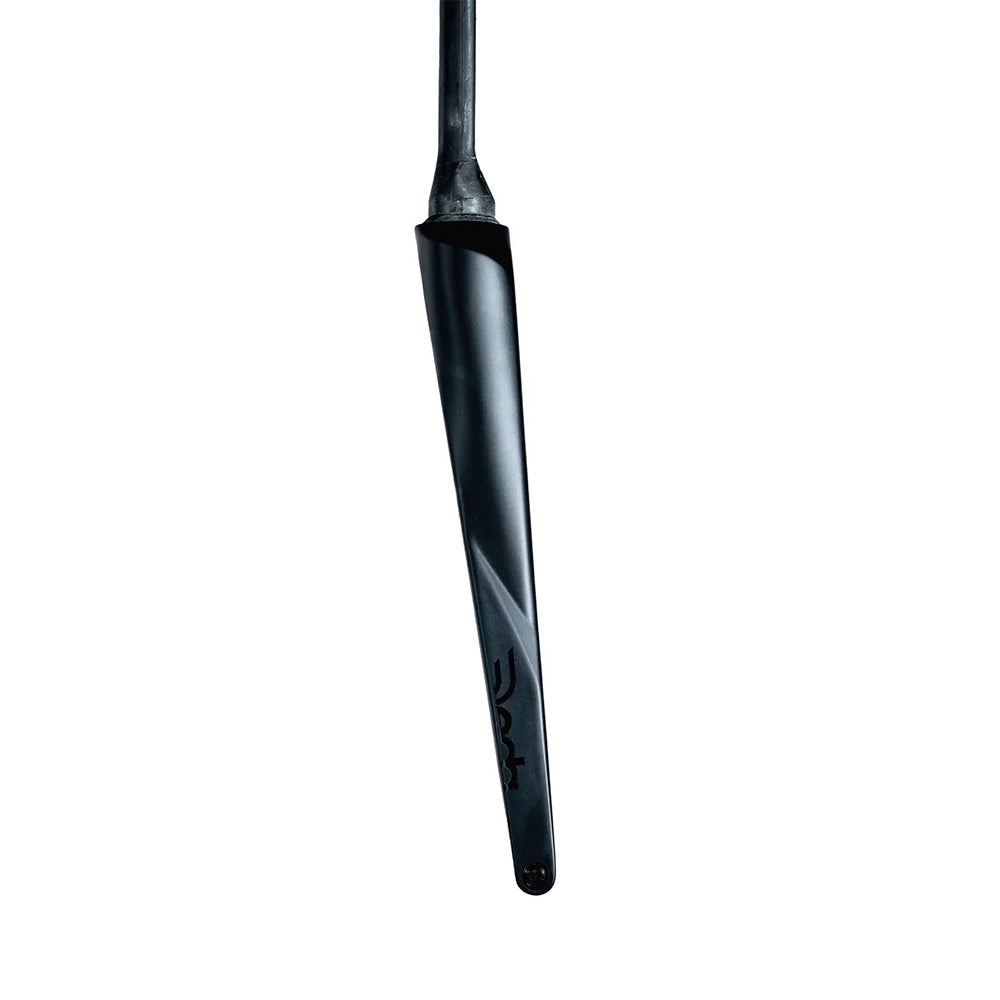

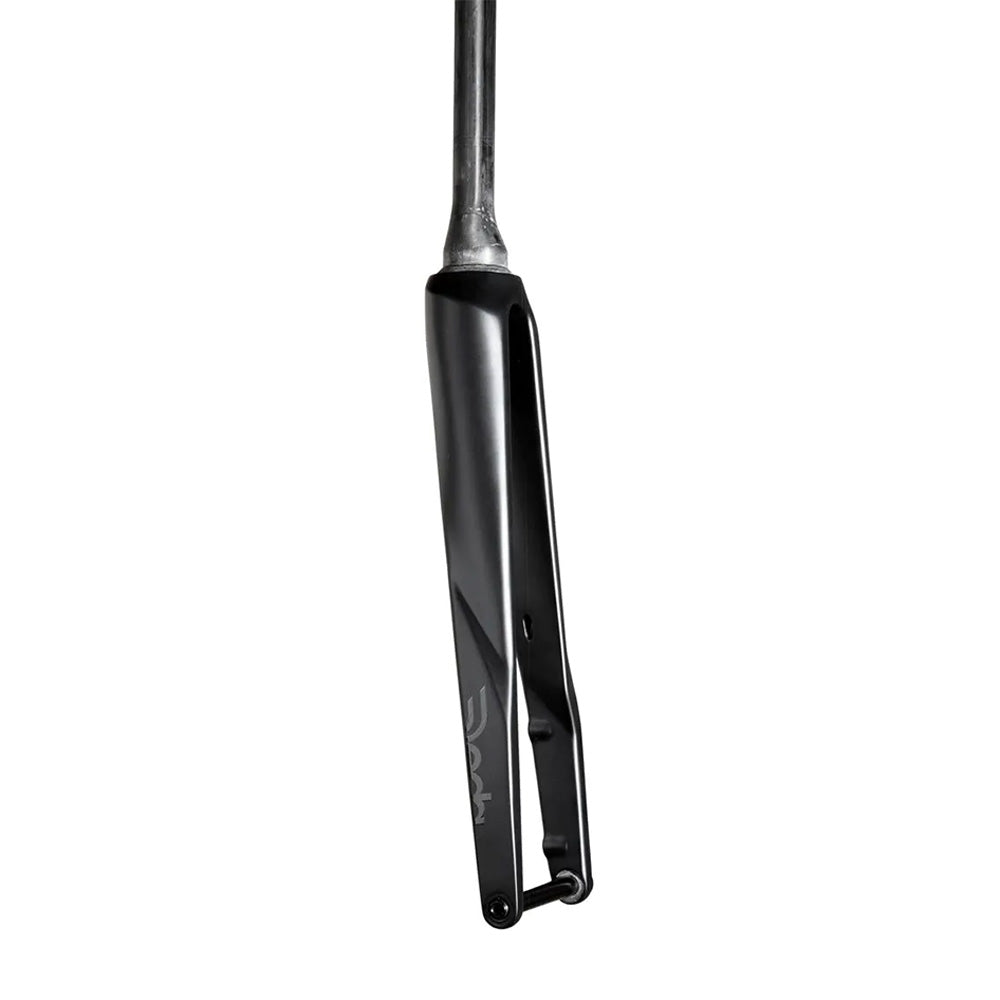

1 1/2 Tapered EDG Straight Road Disc Fork

£599.00

Description

EDG ROAD fork is designed to be compatible with a road bicycle frame. It is designed to be compatible with both standard stems and DCR (Deda Cable Routing) stems, allowing for different cable routing options. Specifically, it supports: standard stems (up to 3 cables, which can include two brake housing cables and one mechanical or electronic shifting cable); DCR stems (up to 4 cables, accommodating two brake housing cables and two shifting cables - mechanical or electronic).

Technical Specifications

Material: Full carbon fibre
Fork steerer: D-Shape 1"1/8
Headset Compatibility: Upper bearing 1” 1/8 lower bearing 1.5”. 45 degrees integrated crown race
Steerer length: 350mm
Axle crown length: 369mm
Rake: 45m
Axle compatibility: 100x12mm thru axle (Included)
Crown diameter: 56mm
Disc brake rotor compatibility: Flat mount 140mm or 160mm
Max fork load: 15k per side (5kg per eyelet)
Finish: UD carbon with POB logo
Max Tyre clearance: 28"
Weight: 414g

Compatibility

Frame: any bicycle frame featuring internal cable routing system and fitting Deda DCR headset, Deda Classic 1 and Classic 2 or tapered 1” 1/8-1.5” / 1” 1/4 -1.5” / 1.5” -1.5”
Stem: All Deda stems are compatible or the stems with a large opening between the fork steerer and stem body to allow the internal cable routing
Bearing Compatibility: Upper: headset/frame headtube with 1” 1/8, 1” 1/4 or 1.5” ; Lower: 1.5” bearing; 45 degrees contact angle bearing
Internal cable routing: With a standard stem up to 3 cables (two brakes housing cables and mechanical/electronic shifting cable); with a DCR stem up to 4 cables (two brakes housing cables and two shifting cables)
